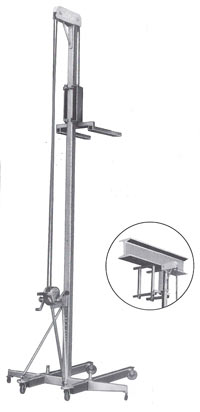

1012A
OSHA APPROVED
LIFTS 1,000 LBS UP TO 12 FEET (14' WITH
OPTIONAL HEIGHT EXTENSION SHOWN)
Sectional Design provides fast, easy set-up, take-down, transport,
and conversion to lift heights as low as 4'6" with overall unit of
6'7".
Two handle roller bearing winch provides fast, smooth operation and
a self energizing brake automatically locks the load in place.
Two outriggers swing out for extra stability and four swivel casters
permit easy positioning.
Model 10-12A meets or exceeds Underwriters
Laboratories standards for safety.
MODEL 1012 A SPECIFICATIONS
Two handle winch for efficent leverage. 5"
non-marking casters with wheel locks.
Will pass through
standard 30" doorway
|
Lift |
O.A. Height |
| CAPACITY |
1000 lbs. |
12' - 7" |
| Minimum Height |
4' - 6" |
9' - 7" |
| With 3' Post |
7' - 6" |
9' - 7" |
| With 5' Post |
9' - 6" |
11' - 7" |
| With 3' & 5' Post |
12' - 6" |
14' - 7" |
| With 2" Hgt. Ext. |
14' - 6" |
14' - 7" |
Post included in complete unit.
|
